Tenda Off-Road Accessories Industry Co.,Ltd.

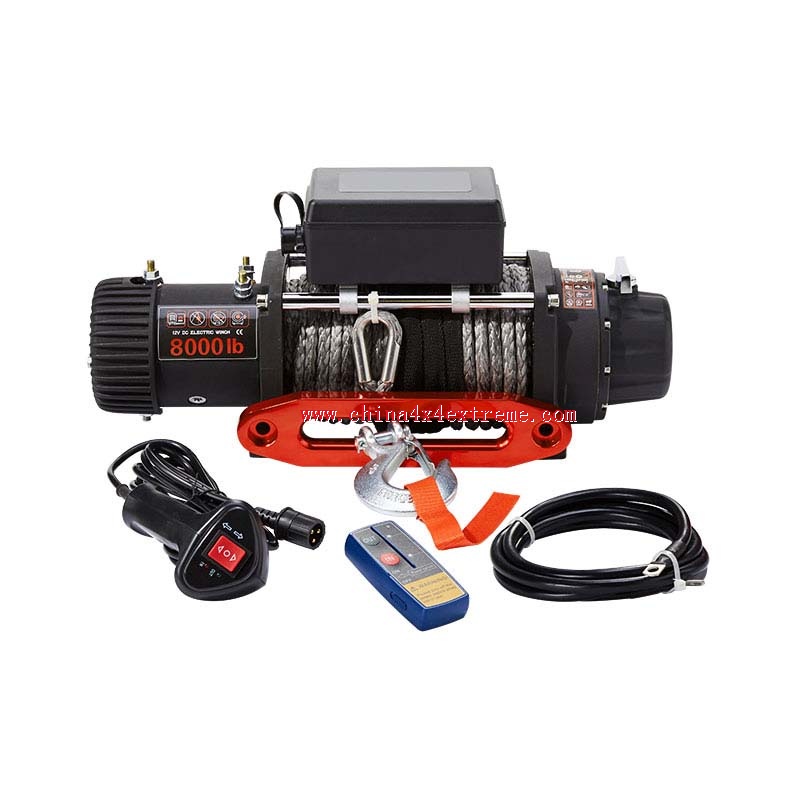

| Rated Line Pull: 8000LB(3630kg) single-line Motor: 4.8hp/3.6kw 12V, Series Wound motor Gear Train: 3-stage planetary Gear Reduction Ratio: 216:1 Clutch: Up and down 90° Synthetic rope :(φ9.1mm×24m) Drum Size: φ2.51”×8.82”(φ64mm×224mm) Overall Dimensions: (L×W×H)21.1”×6.4”×6.7”(535x162x170mm) Gross Weight: 61.7lbs(28kg) Duty Cycle: Intermittently Fairlead: aluminium fairlead Package: 1pc/box, 600x245x370mm Mounting Bolt Pattern: 10”x4.5”(254mm x 114.3mm ) Remote Control: Included |
