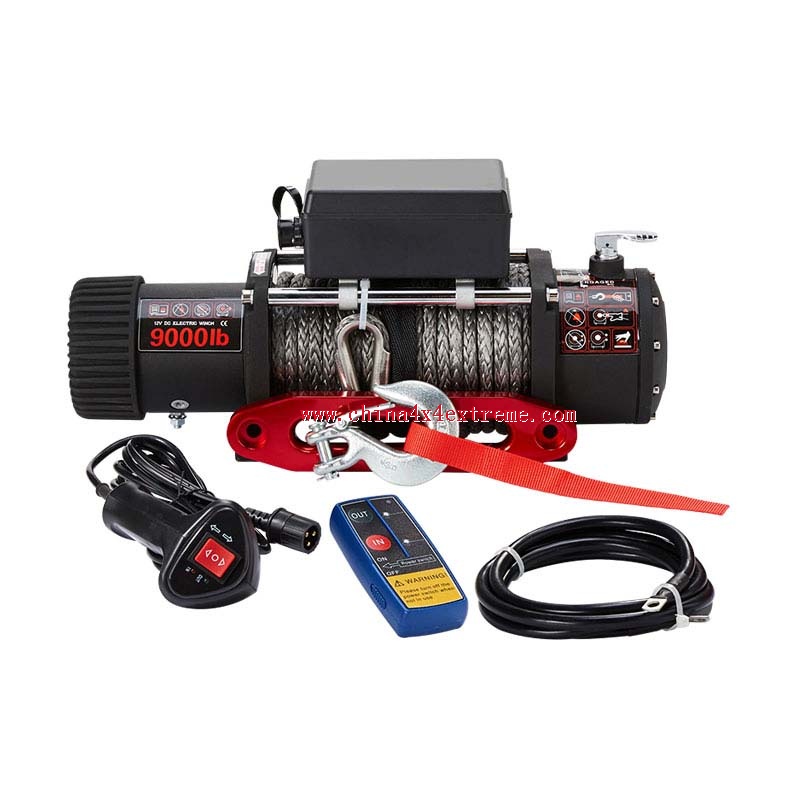

| Rated Line Pull: 9000LB(4082kg) single-line Motor: 5.0hp/3.7kw 12V, Series Wound motor Gear Train: 3-stage planetary Gear Reduction Ratio: 265:1 Clutch: up and down 90° synthetic rope:(φ9.1mm×27m) Drum Size: φ2.51”×8.82”(φ64mm×224mm) Overall Dimensions: (L×W×H)20.7”×6.4”×8.1”(527×163×205mm) Gross Weight: 60.6lbs(27.5kg) Duty Cycle: Intermittently Fairlead: aluminium fairlead Package: 1pc/box, 600x245x370mm Mounting Bolt Pattern: 10”×4.5”(254×114.3mm) Remote Control: Included |
