Tenda Off-Road Accessories Industry Co.,Ltd.

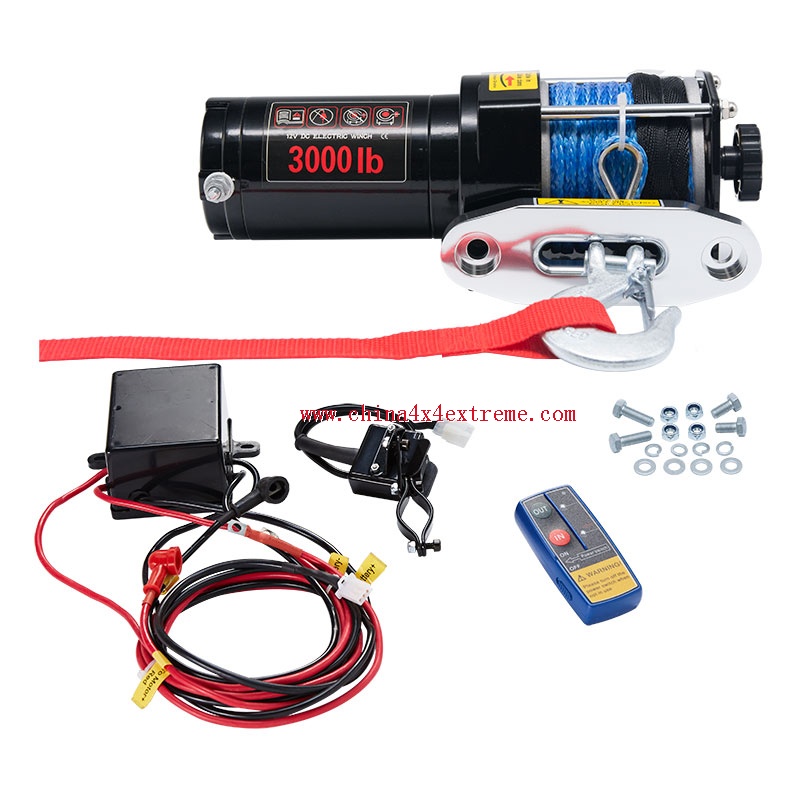

| Rated Line Pull: 3000LB(1361kg) single-line Motor: 3.0hp/2.2kw 12V, Permanent Magnet Motor Gear Train: 1-stage planetary Gear Reduction Ratio: 153:1 Clutch: pull and push synthetic rope：φ5mm×13m Drum Size: φ1.5”×2.83”(φ38mm×72mm) Overall Dimensions: (L×W×H)13.3”×4.8”×4.65”(338×123×118mm) Gross Weight: 17.9 lbs(8.1kg) Duty Cycle: Intermittently Fairlead: aluminium fairlead Package: 1pc/box 415×345×163mm Mounting Bolt Pattern: 5.1"x3.15”(130×80mm ) Remote Control: Included |
